Introducing
The i10 VSD Smart and i16 VSD Smart Velair VSD are inverter-driven, self-contained air conditioning systems. The Velair line consists of several models, but these are the second generation VSD units:
- i10 VSD Smart – 10000 BTU
- i16 VSD Smart – 16000 BTU
The term ‘Smart’ means that the product is more efficient and can be interfaced with on-board home automation systems.
i10 VSD Smart
Performance data
- Width: 571mm
- Height: 320mm
- Depth: 323mm
- Weight: 25kg
- Voltage: 230V
- Cooling capacity: 4,000 – 10,000 BTU
- Maximum input power cooling: 0.64 Kw
- Maximum current: 2.9A
- Input power ECO mode: 0.21 Kw
- Min. seawater flow: 12 l/min
- Refrigerant: R32
- Air outlet: 1 x Ø 100 mm
- Min. opening for return air grill: 400 cm2
- Min. opening for supply air grill: 250 cm2

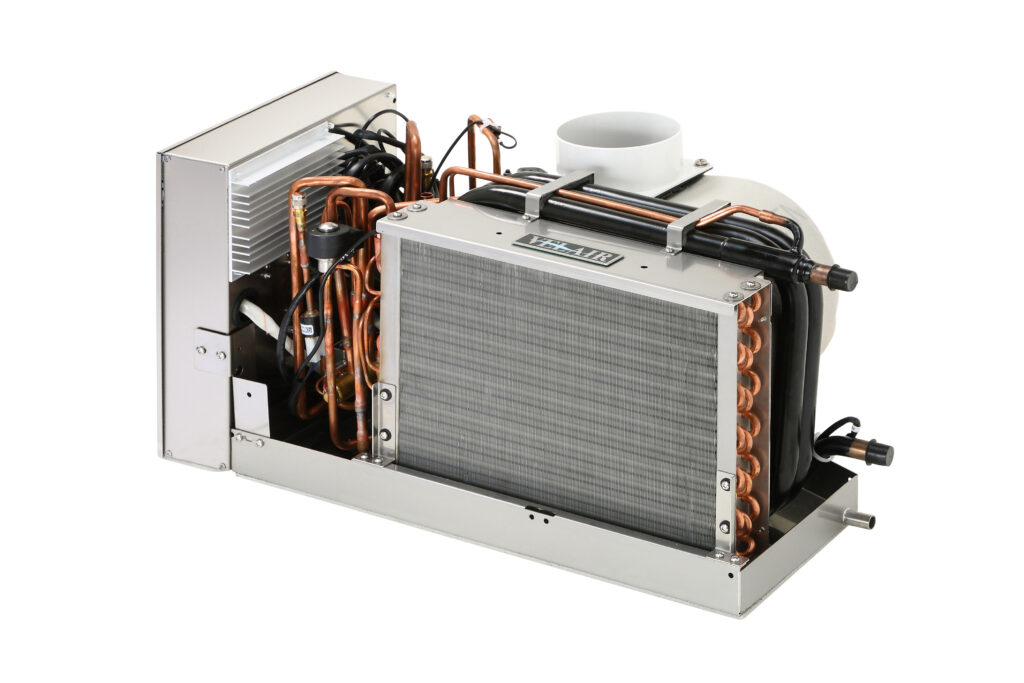

i16 VSD Smart
Performance data
- Width: 650mm
- Height: 330mm
- Depth: 355mm
- Weight: 28kg
- Voltage: 230V
- Cooling capacity: 6,000 – 16,000 BTU
- Maximum input power cooling: 0.93 Kw
- Maximum current: 4.1A
- Input power ECO mode: 0.31 Kw
- Min. seawater flow: 15 l/min
- Refrigerant: R32
- Air outlet: 1 x Ø 125 mm
- Min. opening for return air grill: 600 cm2
- Min. opening for supply air grill: 300 cm2
Find out more
For more information, visit the Uflex website to read more about the i10 VSD Smart and the i16 VSD Smart.
